STEP 1 - MAKING THE BLUEPLANET WIND TUNNEL MODEL

THE SCIENCE OF MEASUREMENT

HOME | AUTOMOTIVE | BLUEPLANET | ELECTRIC CARS | ENERGY | INSURANCE | INDEX  | SOLAR CARS

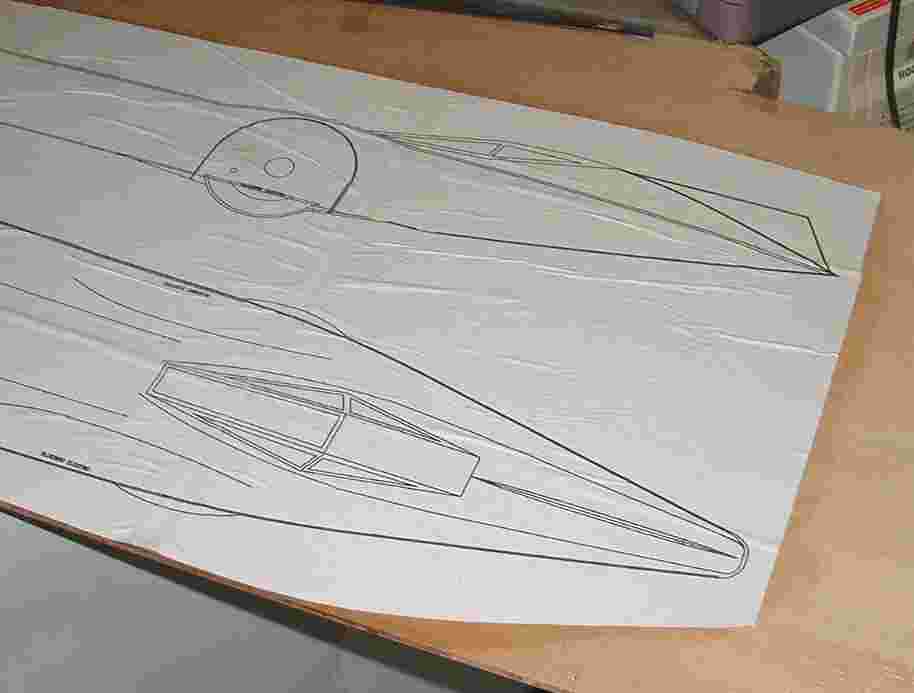

Drawings pasted to plywood



we cheated a bit to speed up the production.  Instead of marking out the plywood manually, two sets of drawings were printed from our Computer drawings.  One drawing was bonded to the plywood sheet using PVA adhesive diluted with 4 parts water.







  plywood

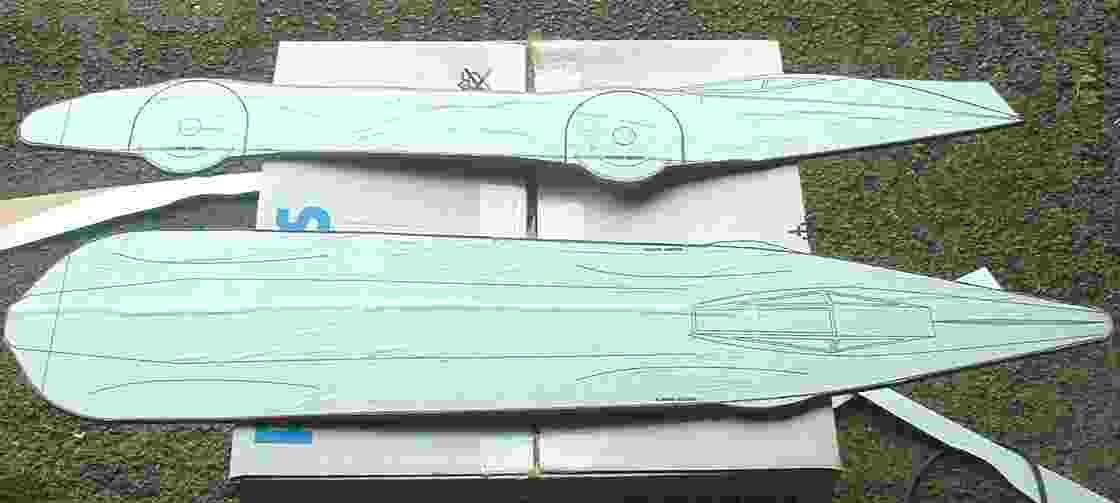

Once dry it is easy to cut out the shapes we need to give sufficient reference for carving.  Use a small scroll jigsaw blade available from most DIY stores.  The smaller blade will allow you to negotiate tight curves easily.



MODEL MAKING STAGES



Steps 1.  Mark out your plywood and cut formers

Step 2.  Assemble plywood formers

Step 3. Fill formers with foam and shape

Step 4. Coat foam plug with plaster

Step 5. Sand, add detail mouldings and prime

Step 6. Paint finished model













LOADING-SERVO  |  CARTRIDGE  |  MOTORS  |   JOYSTICK-CAR

  WIND-TUNNEL   |   WIND TUNNEL DETAILS





The latest electric world land speed record car design, 350mph plus

This is the kind of result you can expect from your wind tunnel - a super slippery 350+ mph electric streamliner. This particular car is charged by solar power, making it probably the world's fastest solar powered electric land speed record car. She also has battery cartridge exchange built in, for instant refueling.
