In
May, 2004, Team Lux competed in the Phaethon 2004 solar car rally in
Greece. Yale University finished in 7th place, immediately behind Team
Aurora and Team Nuon, the winners of the 2003 World Solar Challenge. For
race updates and pictures, please visit the Updates
from Greece section.
Currently,
Yale's efforts are focused towards modifying their car for competition in
the 2005 North American
Solar Challenge. NASC2005 will take place in July, 2005, on 2600 miles
of public roads from Austin, TX to Calgary, Alberta. Check out the updates
section.

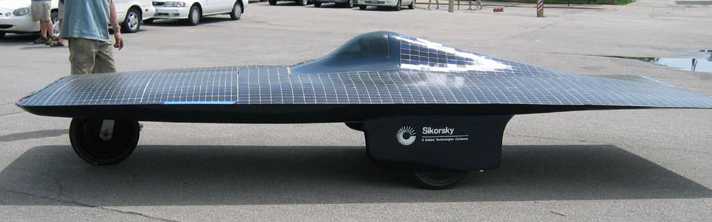

The
John Lee

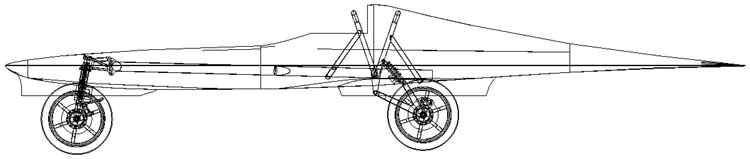

Project Overview - Initial Construction time:
1.5yr Cost: ~$400,000
Dimensions
Length:
5m
Width: 1.8m
Height: 1.03m
Weight: 358lb (162.7Kg) w/o driver
Array
Cell
type: Spectrolab GaAs 23% avg eff
Cell coverage (active area): 88.58% (7.97m^2) (3051 cells)
Theoretical output: ~1900W (based on measured efficiency from SunWise
Technologies)
Real world theoretical output: ~1833W Max power to date: 1410W
Batteries
Type:
650 LG Chem Li Ion cells
Capacity: 60Ahr
Max current draw: 480A
Battery protection circuitry: Proprietary custom circuitry (Worley
circuitry available as backup)
Chassis/Suspension
Type:
Titanium/Carbon fiber space frame
Front suspension: Aircraft style telescoping upright with Bridgestone
Ecopia on an NGM aluminum rim. (single shear)
Rear suspension: Aluminum trailing arm with Bridgestone Ecopia tire on NGM
aluminum rims (rear left wheel is driven by NGM motor). (single shear)
Lux
Millenia
|
Specs:
Array: 17% eff. monocrystalline silicon cells - 800W
Batteries: 8 12V deep cycle lead-acid Optima batteries
Drivetrain: 1999 NGM in wheel motor driving NGM Al rims w/
Bridgestone Ecopia tires
Frame: Aluminum space frame
Body: Carbon fiber lower shell; Kevlar upper shell
Suspension: 4 wheel double wishbone front suspension with
trailing rear suspension
Race Weight: 800lbs. (364kg)
|

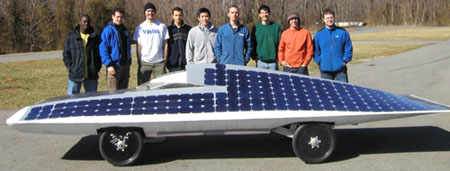

Lux
Millenia
Lux
Millenia served as a testbed for the technologies that would eventually
evolve into the John Lee (JL). LM provided valuable experience in
composite and mold design and manufacture as well as a proving ground for
new electrical systems. Most importantly, most of the LM team became the
JL team, keeping the valuable knowledge we gleaned from LM in our
collective mind's eye.
While
LM has never raced, it has made appearances at events such as Ecofest and
at local highschools. It also was no stranger to the race track. In May of
2002, LM was put to the test at Summit Point Raceway in West Virginia
where it was put through two days of track testing.
Lux Perpetua
|
Specs:
Array: 13.5% efficient laser cut monocrystalline
silicon cells
Batteries: 8 12V lead acid batteries - 96V nominal bus voltage
Drivetrain: 1999 NGM in wheel motor driving NGM Al rims w/
Bridgestone Ecopia tires
Frame: Aluminum space frame
Body: Carbon fiber lower shell; Kevlar upper shell
Suspension: 4 wheel double wishbone front suspension with
trailing rear suspension
Race Weight: 750lbs. (340kg)
|

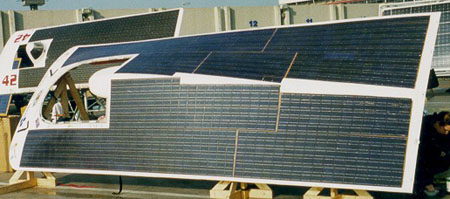

Lux
Perpetua
Created
in 1999, Lux Perpetua, Yale's second solar venture, has competed in
Formulasun and Sunrayce '99, taking 15th place out of a field of 55 in
Sunrayce. LP has also made appearances at various alternative energy
events around the country including at Epcot center in Disney World and at
the US capitol in Washington DC.
Lux Aeterna
|
Specs:
Array:
Batteries: 8 12V lead acids - 96V nominal bus voltage
Drivetrain: NGM '97 motor driving standard dragster rim with
goodyear tires.
Frame: Aluminum-ceramic matrix space frame
Body:
Suspension: 3 wheel double wishbone front suspension with
trailing rear suspension
Race Weight: 1200lbs. (544kg)
|

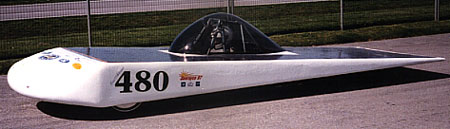

Lux
Aeterna
LA
competed in Sunrayce '97, taking 9th place overall and claiming the prize
for the top rookie team competing that year.
CONTACTS:
Team Lux
10 Hillhouse Ave, DL 222
New Haven, CT 0652
Email:
teamlux@solar.eng.yale.edu
Team
Lux - Yale University
|
