The
Melbourne based non-profit Aurora Vehicle Association Inc. has become one
of the world's most accomplished solar car teams. In the last 24 months,
Aurora has set 8 new world records, including the longest solar car
journey (13,054 km around Australia in 24 days), and has broken world
records set by previous champions Honda (Japan), Biel (Switzerland) and
Queens (Canada).

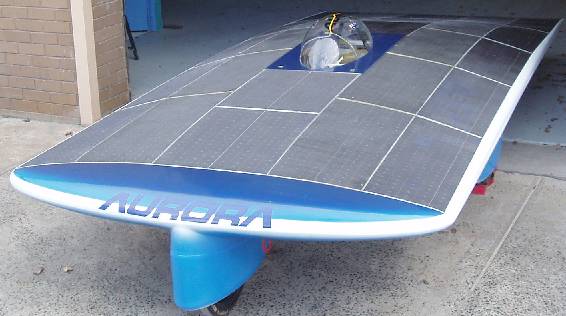

Aurora's
solar car 2005
Aurora
has entered every World Solar Challenge since 1987 and has the enviable
record of one win, three seconds, a fifth, and a sixth place.
Spurred
on through competition, Aurora was one of two teams to compete in all
seven World Solar Challenge events, has consistently been the most
competitive Australian
entrant, the only Australian winner (1999), and second place getter in
1987, 2001 and 2003. Aurora currently (November 2004) holds 9 world
records. Aurora encourages technical collaboration with many of
Australia's scientific research establishments and universities and
attracts as members, highly capable young people interested in developing
the future.
WSC
2005 Team:
David
Fewchuk
Jack McArthur
Tom Baker
Andris Samsons
Kon Kotsonis
Derrick Rodgers
Peter Pudney
Rebecca Trump
Daniel Mills
Todd Palmer
Eli Thurrowgood
David Sims-Williams
Evan Wineland
Suzuka 2005 Team:
David
Fewchuk
Jack McArthur
Tom Baker
Derrick Rodgers
Therese McArthur
Dan Evans
Darren Trafford

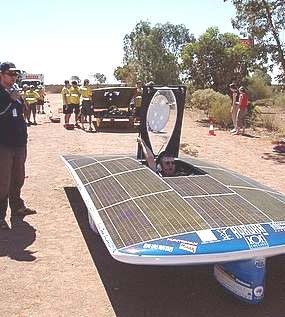

Aurora's
solar car 2004
The
2005 Car
|
|
Dimensions
|
Length:
|
4,628
mm
|
|
Width:
|
2,000
mm
|
|
Height:
|
946
mm
|
|
Wheelbase:
|
1,680
mm
|
|
Track:
|
1,600
mm (at rear wheels)
|
Chassis & Weights
|
Weight:
|
165
kg (without driver, with 18kg battery)
|
|
Frame:
|
Triangular,
carbon fibre, circular cross section.
|
|
|
Single
front wheel.
|
|
|
Two
rear wheels.
|
|
Body
materials:
|
Carbon
fibre lower. Polystyrene and composites upper.
|
|
Suspension:
|
Rigid
frame sprung to body at 3 places.
|
|
Steering:
|
Front
single wheel with push-pull rods.
|
|
Wheels:
|
3
x 16 inch wheels.
|
|
|
Front
is wheel motor.
|
|
|
Rears
are GH Craft carbon fibre.
|
|
Tyres:
|
16
inch, low rolling resistance.
|
|
Brakes:
|
Hydraulic
on all wheels.
|
|
|
Regenerative
braking available from front wheel motor.
|
|
Aerodynamics:
|
Cd
0.1. Frontal area: .75 sq. metres.
|
Solar Array
|
Solar
Cells:
|
Triple
junction, Galium Arsenide, Tecstar Tec1 and Tec3i
|
|
Cell
Efficiency:
|
24-26%
|
|
Panel
Type:
|
25
individual panels produced by laminating process
|
|
|
At
Gochermann Solar Technologies.
|
|
Panel
Weight:
|
Less
than 1 kg per square metre.
|
|
Array
Power:
|
1,900
watts.
|
Motor
|
Type:
|
Developed
by CSIRO-UTS-Aurora.
|
|
|
15
kg weight.
|
|
|
Peak
power: 6 kw
|
|
|
Continuous
power: 1.8 kw.
|
|
|
Operating
range: 100-170V, 0-100 amps.
|
|
|
Efficiency:
98.0%.
|
Power Electronics / Batteries
|
Motor
Controller:
|
High
efficiency unit developed by Tritium.
|
|
Power
Trackers:
|
AERL
Buck Boost, high efficiency, 400 w. capacity
|
|
Batteries:
|
Kockam
Lithium Polymer, 170 volts, 30 kg weight.
|
|
|
|
Aurora
Vehicle Association members:
|
|
MathewAckland
Mark Anderson
Viv Baddeley
Tom Baker
Gordon Baker
Brian Ball
Cameron Ball
Ian Bates
Bill Bennett
Stephen Bicknell
Julia Burns
Mark Burns
Bob Cadden
Glenda Cadden
Seona Candy
Rafael Carmona
Cameron Farant
Dan Evans
David Fewchuk
Frank Fittipaldi
Geoff Forsyth
Tom Forsyth
Lynda Gilbert
Mark Gilligan
Shane Good
Gary Grey
John Hoerner
Katie Holroyd
Clive Humphris
Sorin Ionascu
Bogdan Ionascu
David Knowles
|
Kon
Kotsonis
Andrew Lamb
Simon Liley
Howard Lovatt
Jack Martinich
Steve Martinich
Adrian Marziano
Damien McArthur
Jack McArthur
Therese McArthur
Daniel Mills
Todd Palmer
David Peterson
Peter Pudney
Derrick Rodgers
Doug Rolfe
Andris Samsons
Mathew Sandford
Rosemary Schmedding
Chris Selwood
Robert Shandley
Jim (Dimitrios) Stavridis
Darren Trafford
Dennis Trewhella
Bradley Trewin
Eli Thurrowgood
Satish Vasan
Tony Vriens
Douglas Williams
Gray Wilson
Evan Wineland
Peter Young
|
|

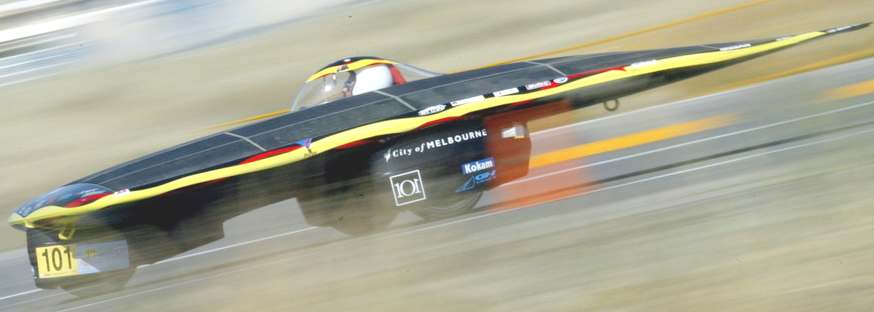

Aurora's
