TOWER BRIDGE LONDON

HOME  BIOLOGY  CREW  GEOGRAPHY   HISTORY   INDEX  MUSIC  THE BOAT  SOLAR CELLS  SPONSORS





Originally, London Bridge was the only crossing over the Thames. As London grew, so more bridges were added, but these were all to the west of London Bridge, since the area east of London Bridge had become a busy port. In the 19th century, the east end of London became so densely populated that public pressure mounted for a bridge to the east of London Bridge, as journeys for pedestrians and vehicles were being delayed literally by hours.



Finally in 1876, the Corporation of London, who were responsible for that part of the Thames, decided that the problem could be put off no longer.  Tower Bridge was completed in 1894, after 8 years of construction. However, many people don't realise why it is so different from London's other bridges.

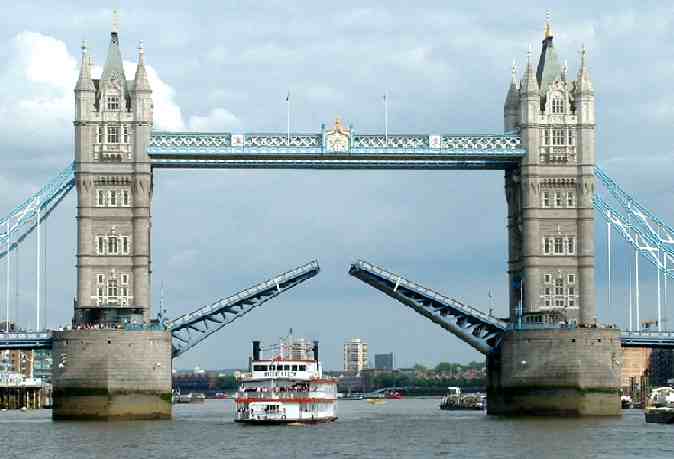

TOWER BRIDGE, LONDON, ENGLAND JUNE 2004





How a Design was Chosen



The big problem for the Corporation of London was how to build a bridge downstream from London Bridge without disrupting river traffic activities. To get as many ideas as possible, the "Special Bridge or Subway Committee" was formed in 1876, and opened the design of the new crossing to public competition.



Over 50 designs were put forward for consideration, some of which you can see if you visit The Tower Bridge Exhibition. However, it wasn't until October 1884 that Horace Jones, the City Architect, in collaboration with John Wolfe Barry, offered the chosen design for Tower Bridge as a solution.



The Building of the Bridge



It took 8 years, 5 major contractors and the relentless labour of 432 construction workers to build Tower Bridge.

Two massive piers had to be sunk into the river bed to support the construction, over 11,000 tons of steel provided the framework for the towers and walkways. This was then clad in Cornish granite and Portland stone, both to protect the underlying steelwork and to give the bridge a more pleasing appearance.



How it Works - Then & Now



When it was built, Tower Bridge was the largest and most sophisticated bascule bridge ever built ("bascule" comes from the French for "see-saw"). It was a hydraulically operated bridge, using steam to power the enormous pumping engines. The energy created was then stored in six massive accumulators so that, as soon as power was required to lift the bridge, it was readily available. The accumulators fed the driving engines, which drove the bascules up and down. Despite the complexity of the system, the bascules only took about a minute to raise to their maximum 86 degrees.



Nowadays, the bascules are still operated by hydraulic power, but since 1976 they have been driven by oil and electricity rather than steam. The original pumping engines, accumulators and boilers are on show as part of The Tower Bridge Exhibition, and you can also see the current machinery and control cabins when you come on a "Behind The Scenes Tour". (Behind The Scenes Tours must be pre-booked)



Interesting Facts



Tower Bridge has a fascinating history, which is explored in detail for visitors at The Tower Bridge Exhibition. Here are a few interesting facts you may not have known:





1910

The high-level walkways, which were designed so that the public could still cross the bridge when it was raised, were closed down due to lack of use. Most people preferred to wait at the bottom and watch the bascules rise up!

1912

During an emergency, Frank McClean had to fly between the bascules and the high-level walkways in his Short biplane, to avoid an accident.

1952

A London bus had to leap from one bascule to the other when the bridge began to rise with the bus still on it.

1977

Tower Bridge was painted red, white and blue to celebrate the Queen's Silver Jubilee. (Before that, it was painted a chocolate brown colour).

1982

Tower Bridge opened to the public for the first time since 1910, with a permanent exhibition inside called the Tower Bridge Exhibition. The Walkways were glazed for the first time to house the new Exhibition.

1993

The centenary exhibition - The Tower Bridge Experience opened, featuring animatronic models telling the story of Tower Bridge.

1994

Tower Bridge became available to hire for parties and receptions.

2002

The current Tower Bridge Exhibition opened, refocusing on the magnificent views from the Walkways and the history of the Bridge.

2003

Tower Bridge Exhibition came of age celebrating its 21st Birthday!
